Description
Features:
- Frequency range: 9 kHz – 26.5 GHz
- Resolution bandwidth (RBW): 1 Hz-10 MHz, in 1-3-10 sequence
- -165 dBm/Hz Displayed Average Noise Level (Typ.)
- -105 dBc/Hz@1 GHz,10 kHz offset SSB Phase Noise (Typ.)
- Real time spectrum analysis (option SSA5000-RTA1)
- 25/40 MHz real time spectrum analysis BW (40 MHz via option SSA5000-B40)
- Channel power, ACPR, OBW, Harmonic, TOI measurements and more (option SSA5000-AMK)
- 12.1-inch multi-touch screen
- Web Browser Remote Control on PC and Mobile Terminals and File Operation
- OCXO option must be installed at factory (option 10M_OCXO_L)
SIGLENT SSA5000A spectrum analyzers are powerful and flexible tools for complex RF spectrum and signal analysis. With the capability of real-time spectrum analysis, the analyzer can provide multi-dimensional data displays, as well as advanced triggering to solve modern RF spectrum challenges, including channel power measurement, hopping frequency, conflict channel, and spectrum interference.
Applications include broadcast monitoring/evaluation, cellular site, IoT, WLAN and Bluetooth surveying, research and development, education, production, and maintenance.

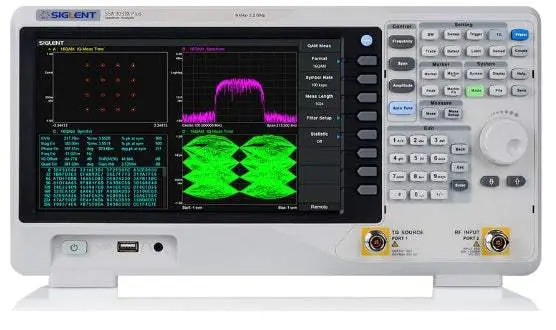

*The image is for reference only. See product specification for details.
