Description
Features:
- 2.1 GHz spectrum analyzer
- Includes tracking generator and pre-amplifier
- -161 dBm/Hz Displayed Average Noise Level (DANL)
- < -98 dBc/Hz phase noise
- < 0.7dB total amplitude accuracy
- 1 Hz~1 MHz Resolution Bandwidth (RBW)
- 10.1 inch Multi-Touch Screen, Mouse and Keyboard supported
- Web Browser Remote Control on PC and Mobile Terminals and File Operation
- **Available as options: A/D Signal Modulation Analysis, Reflection Measurement, EMI filter and Quasi-Peak Detection, Advanced Measurement/Waterfall Chart
The SIGLENT SSA3000X Plus series spectrum analyzers are powerful and flexible tools for RF signal and network analysis. With models available between 1.5 and 7.5 GHz, the analyzer delivers reliable automatic measurements and multiple modes of operation. Optional functions include RF power measurement, vector signal modulation analysis, reflection measurement, and EMI test.
The SSA3000X Plus can be used in a variety of applications, including broadcast monitoring/evaluation, site surveying, S-parameter measurement, analog/digital modulation analysis, EMI pre-compliance test, research and development, education, production, and maintenance.

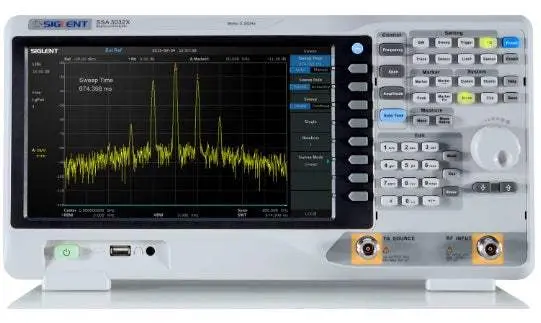

*The image is for reference only. See product specification for details.
