Description
Features:
- 33 GHz bandwidth
- 4 full-bandwidth channels
- 10 bit ADC
- 128 GSa/s sample rate on all channels
- Up to 2 Gpts of memory
- Upgradable to 110 GHz
- AutoProbe II interface is compatible with your existing InfiniiMax probes
- Optional calibration module for on-site self-calibration
- High-speed SDA and Clock Recovery included
- User-Defined functions included
What’s included:
- USB keyboard and mouse
- Kit of (5) 3.5 mm female to 3.5 mm female connector saver adapters
- Kit of (10) connector saver collars
- Torque wrench – 8 in-lb, 5/16 inch
- ESD mat with wrist strap and cord
- Heel ground strap
The Infiniium UXR is the first series of real-time oscilloscopes to offer ultra-high-performance acquisition with 10 bits of high-definition resolution. With up to 4 channels of simultaneous up to 110 GHz of bandwidth, each concurrently sampling at a staggering 256 GSa/s, Infiniium UXR delivers the world-leading performance, ultra-low noise and high signal fidelity necessary for engineers and scientists to truly see and understand even the fastest phenomena – enabling you to more quickly develop the next generation of technology and research.
The UXR0334A can effectively meet your toughest test-system challenges and requirements with its bandwidth upgradability. It also includes high-speed SDA and clock recovery, user-defined functions, and an optional calibration module.

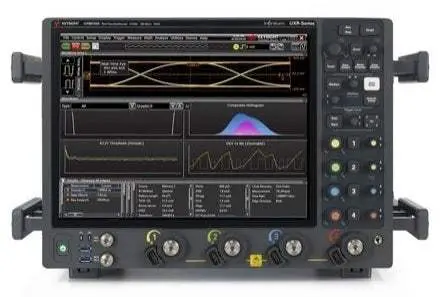

*The image is for reference only. See product specification for details.
