Description
Features:
- 3.5″ Color LCD
- Consecutive Test Frequency
- Basic Accuracy: 0.05%
- Measuring Speed up to 25ms (Max.)
- Full Frequency Range or Spot OPEN/SHORT
- 16 Major/Secondary Parameter Measurement Combinations and Two Additional Monitoring Parameters (Maximum Four Different Parameters Can be Shown Simultaneously)
- DCR Measurement and Internal D.C. Bias Voltage (±2.5V)
- PASS/FAIL Judgment
- Auto Level Control (ALC) Function
- Bin Function Provides 9 Bin and l AUX, Total 10 Bins
- 10 Step List Tests to for Different Frequency, Voltage and Current Criteria
- Standard Interface: RS-232C, Handler and USB Storage
- Compact Size (2U,1/2-Rack Width)

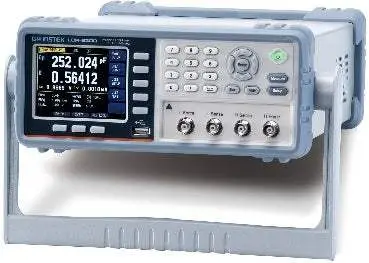

The compact LCR-6000 Series works in small spaces
The five models in the GW lnstek LCR-6000 series have a test frequency range that extends to 300 kHz and have a basic accuracy of 0.05%. Their compact size design, 2U height and l/2 rack width, makes them suitable for either bench top or system rack operation. And their ability to display both settings and results concurrently makes them an excellent tool for R&D, production testing and IQC.
Rich functionalities with the compact size
The LCR-6000 Series offers two additional monitoring parameters, and simultaneously displays four parameters: primary/secondary, and two monitoring parameters. The 3.5-inch color LCD display indicates the measurement results, and also provides PASS/FAIL information.
