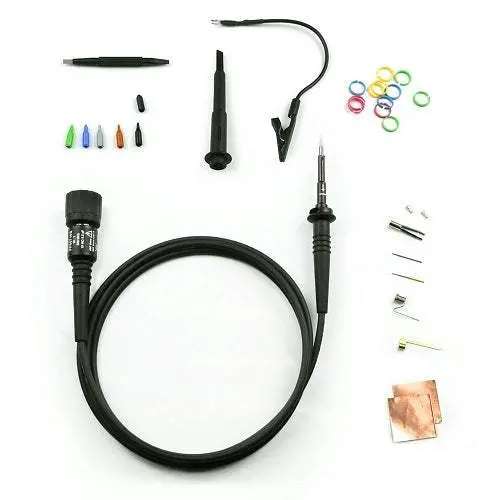

Teledyne LeCroy PP009-1 Passive Voltage Probe – Factory New

Description

Features:

LeCroy, Probe, Passive, 500 MHz, 10: 1 (for WaveSurfer Xs Oscilloscope family)

• A Teledyne LeCroy ÷10, 500 MHz, 10 MΩ, Passive Probe
• ÷10, 500 MHz, 10 MΩ, Passive Probe
• Bandwidth (Probe Only) 500 MHz
• Maximum Input Voltage    400V
• nput CapacitanIce 9.5pF
• Input Resistance 10MΩ

Passive probes are the standard probe provided with most oscilloscopes. Typical passive probes provide a 10:1 attenuation and feature a high input resistance of 10 MΩ. This high input resistance means that passive probes are the ideal tool for low frequency signals since circuit loading at these frequencies is minimized. Passive probes are designed to handle voltages of at least 400V, some as high as 600V. Teledyne LeCroy passive probes feature an attenuation sense pin which tells the oscilloscope to scale the waveforms automatically requiring no user input.

Accessories:

• PKIT1-5MM-102 Basic Adapter Kit
• PKIT1-5MM-101 Micro Clip Kit

Optional Accessories:

• Ground Lead with mini clip PK1-5MM-119
• Ground Lead, 8 mm socket PK1-5MM-120
• Ground Lead, 2 mm plug PK1-5MM-121
• Ground Lead, 4 mm plug PK1-5MM-122
• High Frequency Compensated Ground Lead PK1-5MM-123*
• Spring Tip, 0.8 mm PK1-5MM-109
• Spring Tip, 0.38 mm PK1-5MM-124
• IC Cap, 2.54 mm pitch PK1-5MM-108
• Ground Spring PK1-5MM-118
• Single Lead Adapter PK1-5MM-111
• Dual Lead Adapter PK1-5MM-112
• Adapter, 2 mm plug PK1-5MM-116
• Adapter, 4 mm plug PK1-5MM-117
• Pico Hook™ PK1-5MM-113
• Micro Clip, Long PK1-5MM-114Y, PK1-5MM-114G
• Micro Clip, Short PK1-5MM-115Y, PK1-5MM-115G
• PCB Adapter PK1-5MM-107
• BNC Adapter (For low voltage use only ≤ 42 Vpk AC + DC) PK1-5MM-110
