Description
Features:
- 9-inch WVGA color display with 15 horizontal grids shows 50% more Signal
- TekVPI probe interface supports active, differential, and current probes with automatic scaling and units
- New front-end design enables more accurate measurements
- 32 automated measurements, and FFT function for quick waveform Analysis
- Search and Mark features for easy identification of events that occur in the acquired waveform
- HelpEverywhere provides helpful on-screen tips for new users
- Built-in Scope Intro handbook provides operating instructions and oscilloscope fundamentals
- The instrument user interface and the front panel overlay is translated into 10 languages
Accessories:
- TPP0200 – 200 Mhz, 10x passive probe (one per analog channel) 200 Mhz models
- TPP0100 – 100 Mhz, 10x passive probe (one per analog channel) for 70 MHz and 100 MHz models
- 071-3635-xx – compliance and safety instructions
- 077-1149-xx – programmer manual
- power cord
- calibration certificate documenting traceability to national metrology institute(s) and ISO9001 quality system registration
- 5 year warranty covering all parts and labor, excluding probes
Specifications:
- 70 MHz
- 2 Channel
- 2 GS/s
- 5 MPts

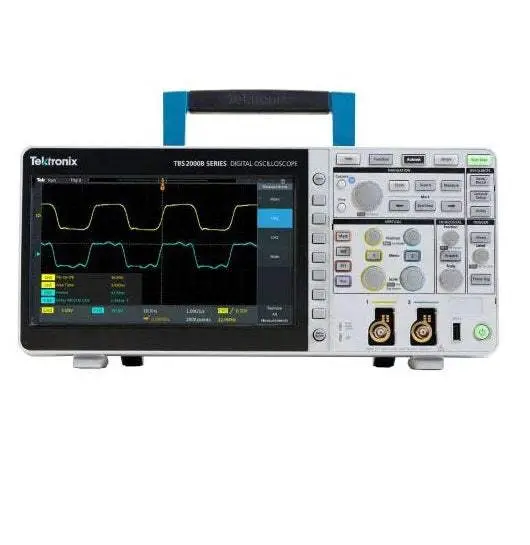

The TBS2072B with a 9-inch WVGA display, 5 million point record length and 2 GS/s sample rate, capture and display significantly more signal to help you debug and validate the designs faster. Easily and confidently analyze your signals with new on-waveform cursor readouts and 32 automated measurements, each with informative tips. The TekVPI probe interface supports traditional passive BNC probes, but also enables wide application coverage with the latest active voltage probes and current probes.
