Tektronix TAP1500 Active Probe – Factory-New, 1.5 GHz Bandwidth

Description

Features:

• ≥1.5 GHz Probe Bandwidth
• <267 ps Rise Time
• ≤1 pF Input Capacitance
• 1 MΩ Input Resistance
• –8 V to +8 V Input Dynamic Range
• –10 V to +10 V DC Input Offset Range
• Versatile Mechanical Performance
• Small for Reliability
• Easy-to-Use

Connects Directly to DPO7000 and DPO4000 Series Oscilloscopes Using the New TekVPI™ Probe Interface

Provides Automatic Units Scaling and Readout on the Oscilloscope Display

Easy Access to Oscilloscope Probe Menu Display for Probe Status/Diagnostic Information, and to Control Probe DC Offset

Applications:

• High-speed Digital Systems Design
• Component Design and Characterization
• Manufacturing Engineering and Test
• Educational Research
• Signals with Voltage Swings up to 16 Vp-p

Accessories Included with New Probes:

• One-year warranty covering all parts and labor on New Probes
• Low-inductance 1 in. Z-Ground lead: 2 each
• 3 in. Ground lead: 2 each
• 6 in. Ground lead: 2 each
• Y-Lead adapter: 2 each
• Color-coding clips: 2 each of 5 colors
• Solderable probe tips: 10 each
• Micro CKT test tip: 4 each
• Right angle square pin adapter: 2 each
• 100 mm square pin ground adapter: 2 each
• User manual
• Nylon carrying case

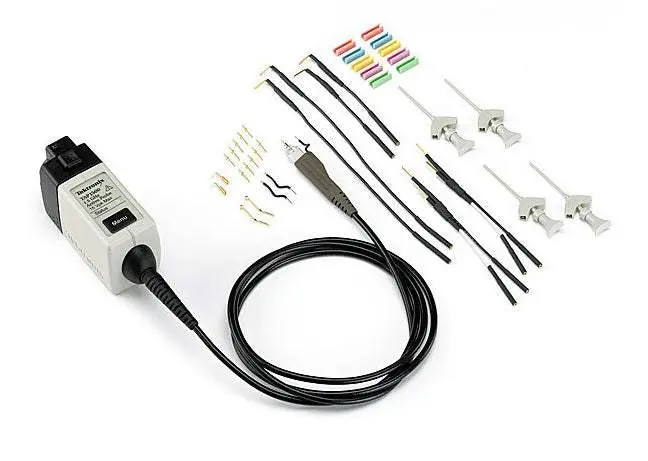

The Tektronix TAP1500 Single-ended Active FET Probe provides excellent high-speed electrical and mechanical performance required for today’s digital system designs. Specifically designed for use and direct connection to the TekVPI™ probe interface used on Tektronix’ new DPO7000 and DPO4000 Series Oscilloscopes, the TAP1500 Active FET probe achieves high-speed signal acquisition and measurement fidelity by solving three traditional problems:

• Lower DUT loading effects with ≤1 pF input capacitance and 1 MΩ input resistance
• Versatile DUT connectivity for attaching to small SMDs
• Preserves oscilloscope bandwidth at the probe tip for DPO7000 and DPO4000 Series Oscilloscope models, up to ≤1 GHz
