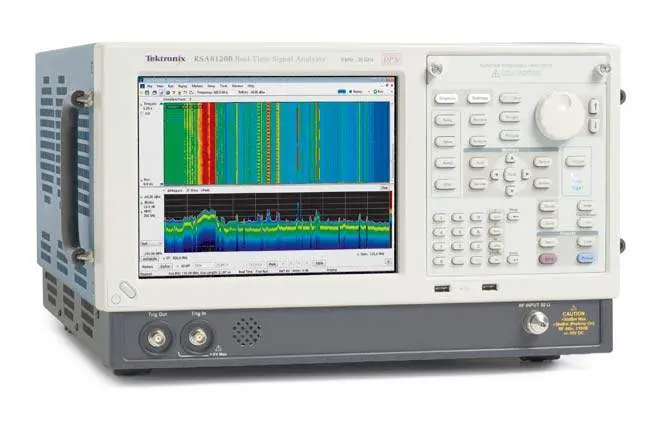

Tektronix RSA6106B Used Real-Time Spectrum Analyzer

Description

Additional Features:

• Frequency range: 9 kHz-6.2 GHz
• 20 dBm 3rd order intercept at 2 GHz, typical
• Displayed average noise level –151 dBm/Hz at 2 GHz (–167 dBm/Hz, preamp on, typical) enables low-level signal search
• Revolutionary DPX displays transients with a minimum event duration of 3.7 μs
• Trigger on frequency edge or power level transients with a minimum event duration of 3.7 μs in the frequency domain, 9.1 ns in time domain
• Up to 7.15 s acquisitions at 110 MHz bandwidth can be directly stored as MATLAB compatible files
• High-performance spectrum analysis Fully preselected and image free at all times for maximum dynamic range at any acquisition bandwidth
• Fastest high-resolution sweep speed: 1 GHz sweep in 10 kHz RBW in less than 1 second
• Internal preamp up to 20 GHz
• DPX spectrum processing provides an intuitive understanding of time-varying RF signals with color-graded displays based on frequency of occurrence
• Swept DPX spectrum enables unprecedented signal discovery over full instrument span
• DPX density trigger activated directly from DPX display
• Time-qualified and runt triggers trap elusive transients
• Frequency mask trigger captures any change in frequency domain
• Gap-free DPX spectrogram records up to 4444 days of spectral information for analysis and replay
• Interfaces with TekConnect® probes for RF probing

Applications

• Spectrum management – find interference and unknown signals
• Radar/EW – full characterization of pulsed and hopping systems characterize radar and pulsed RF signals
• RF debug – components, modules, and systems
• Radio/Satellite communications – analyze time-variant behavior of cognitive radio and software-defined radio systems
• EMI diagnostics – increase confidence that designs will pass compliance testing
• Long Term Evolution (LTE), Cellular

The RSA6106B gives you the functionality of a high-performance spectrum analyzer, wideband vector signal analyzer, and the unique trigger-capture-analyze capability of a real-time spectrum analyzer – all in a single package. A typical 20 dBm TOI and -151 dBm/Hz DANL at 2 GHz gives you the dynamic range you expect for challenging spectrum analysis measurements.
