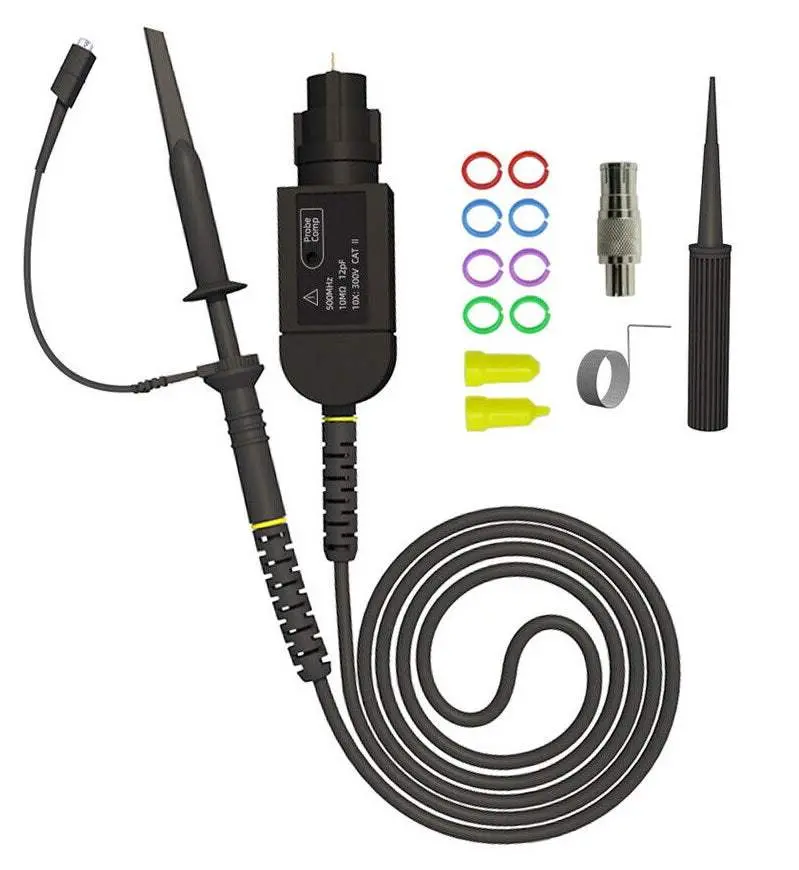

Tektronix P5100A High-Voltage Passive Probe – Tested & Graded

Description

Features

• DC to 500 MHz
• 2500 VPeak, 1000 V CAT II
• 100X with Readout Coding
• UL3111-1, EN61010-1, IEC61010-2-031, CSA1010.1, CSA1010.2.031
• 7 to 30 pF Compensation Range
• Nominal Length: 2m
• Attenuation: 100x
• Rise Time (typical):1.75 ns
• Loading:40 MΩ/1.5 pF
• Max. Input VDC or RMS: 2.5 kV, (DC+Pk AC), 1,000 V CAT II
• Readout:Yes

Applications

• Power Supply Design
• Design Motor Drive
• Electronic Ballast
• Power Semiconductors
• Switch Mode Control
• UPS Systems
• Power Converters

The Tektronix P5100A is a low input capacitance, high-voltage probe (2.5 kV) designed for higher-frequency applications. The probe can be compensated to match plug-ins and oscilloscopes with nominal input capacitances of 7-30 pF. A variety of screw-on accessories provide easy connection to the device-under-test.
