Description
Features:
- 20 GHz
- On All Four Channels Simultaneously
- Digital Serial Analyzer Models with Dedicated Configuration for High-speed Serial Design and Compliance Testing
- Enhanced Bandwidth to the Probe Tip Extended to Support Multiple Bandwidth Steps for Advanced Signal Integrity
- Unique Serial Pattern Triggering Up to 3.125 Gb/s and 8b/10b Standard Protocol Triggering for Isolation of Pattern-dependent Effects and NRZ Serial Test Pattern Triggering up to 6.25 Gb/s
- 12.1″ Largest XGA Touch Screen Display in the IndustrySerial Data Analysis and Compliance for PCI Express, Serial ATA, FB-DIMM, SAS, Fibre Channel, IEEE 1394b, RapidIO, XAUI, HDMI, DVI, Ethernet, USB 2.0
- Most Popular Jitter and Timing Measurement and Analysis Package
Applications:
- Signal Integrity, Jitter and Timing Analysis
- Verification, Debug and Characterization of Sophisticated Designs
- Debugging and Compliance Testing of Serial Data Streams for Telecom and Datacom Industry Standards
- Investigation of Transient Phenomena
- Spectral Analysis

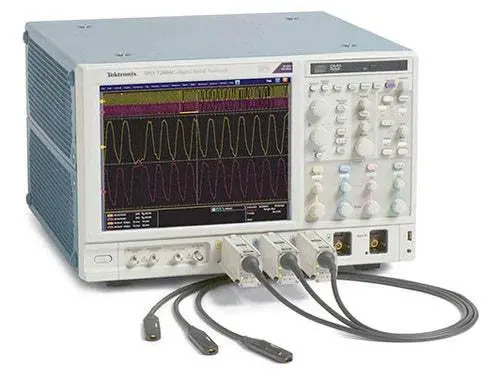

The Tektronix DPO72004 is a digital oscilloscope.
