Description
SRC•DX™ is a revelation for software upscaling: a low RF noise USB to single or dual-coax S/PDIF bridge supporting 705.6/768kHz PCM that’s fully compatible with FPGA-based upsamplers and high-end music servers. Eschewing a direct USB-to-DAC interface means the DAC’s USB receiver chip is turned off—resulting in less internally generated RF noise. S/PDIF’s self-clocking protocol is inherently much simpler than USB and SRC•DX’s low power consumption lowers RF noise further still. This helps to elevate the quality of server-based sources so that PGGB, HQPlayer, Roon and other capable software can sound as good as possible.

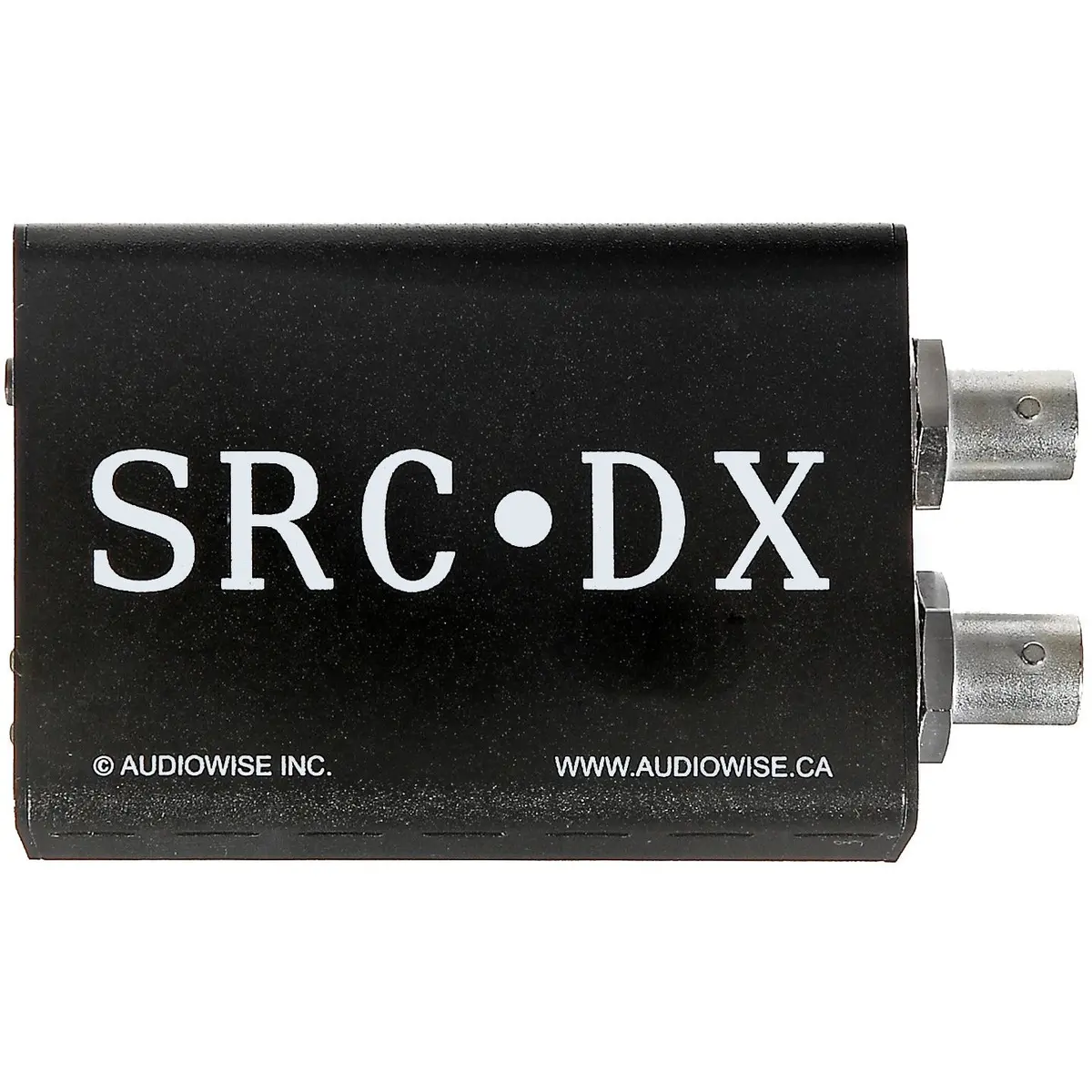

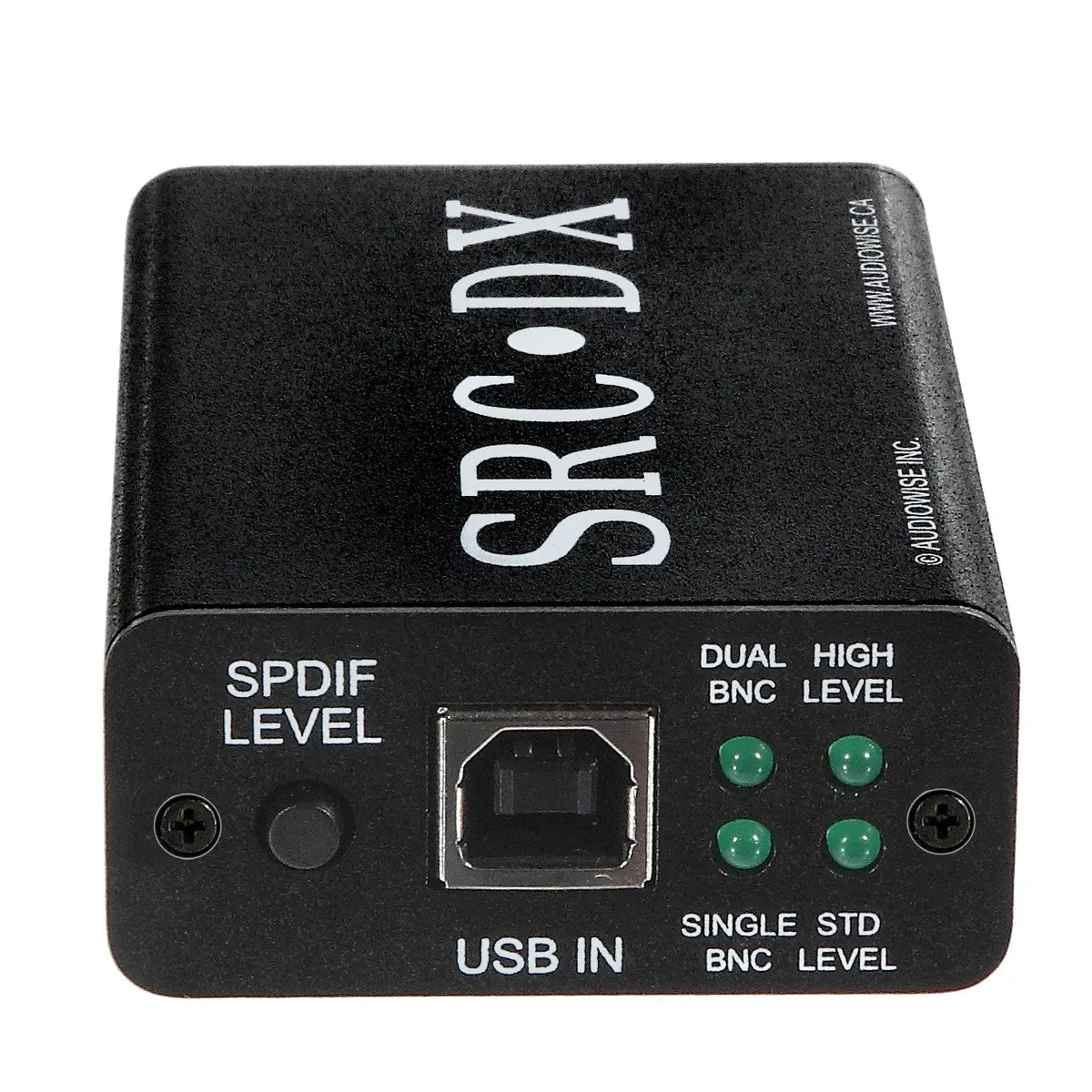

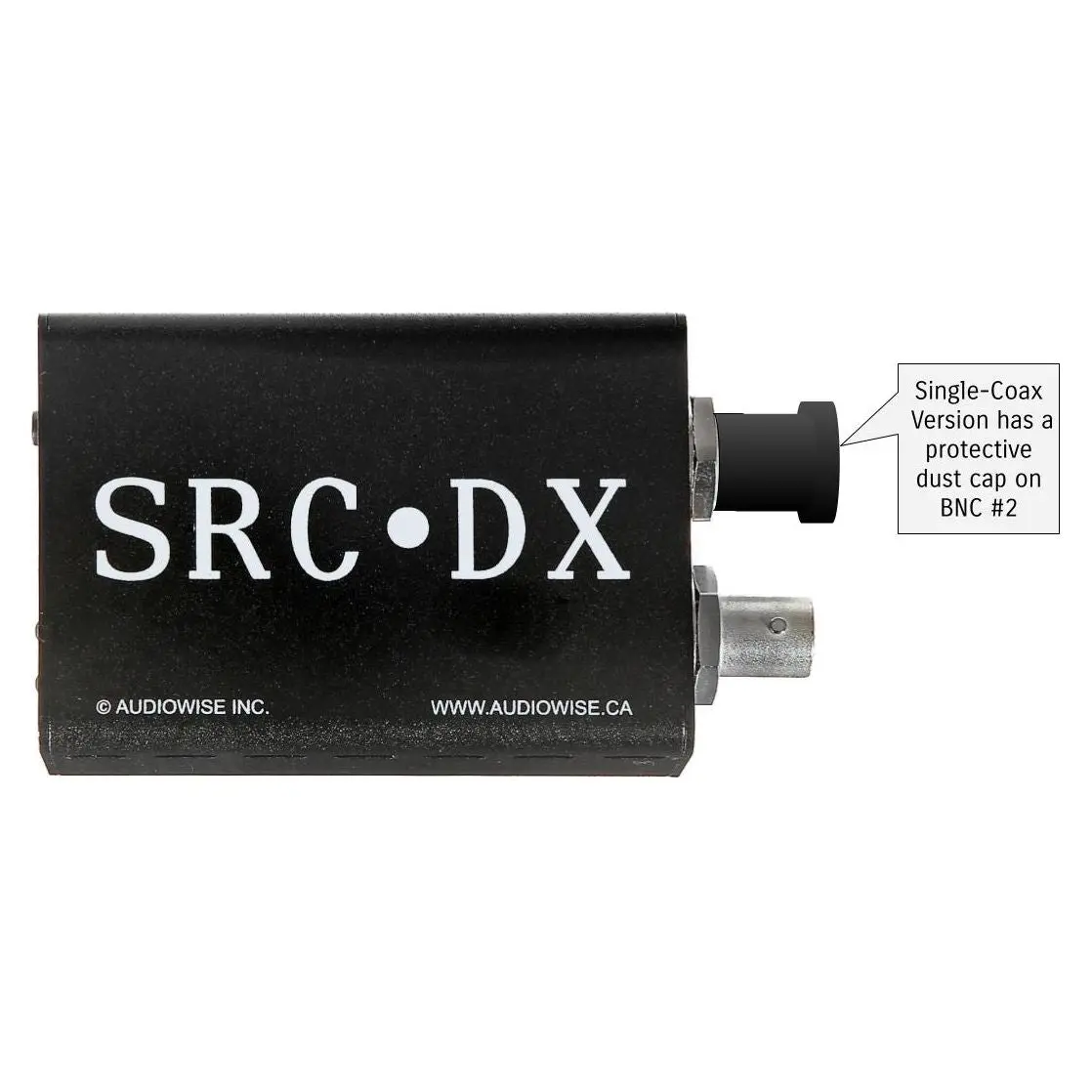

SRC•DX is USB 2.0 class-compliant for plug-and-play operation with Windows, macOS and Linux—powered by the 5V USB port. A push-button selects standard or high level for signal compatibility with all DACs. Status LEDs indicate single-coax or dual-coax mode of operation. BNC connections ensure reliable transmission of high-speed digital audio. The Dual-Coax version is recommended for operation with Chord Electronics DACs. The Single-Coax version is recommended for operation with the single digital coax input of standard DACs or the single digital coax input of Chord Electronics MScaler.
|
Includes:
|
|
Links:
|
| Input Format: | USB 2.0 High Speed (480 MB/sec) |
| Output Formats: | S/PDIF (Consumer) – format & signal level |
| AES/EBU (Professional) – format & signal level | |
| Chord Electronics DX (single or dual coax) – format & signal level | |
| Dimensions (LxWxH): | 3.5″ x 2.0″ x 1.0″ (90mm x 50mm x 25mm) |
| Shipping Weight: | ~0.55 lbs (0.25 kg) |
| Power: | USB DC 5V @ 50mA |
