Description
Features:
- Frequency range: 9 kHz to 3.2 GHz
- 25 MHz real time analysis bandwidth (40MHz with option)
- Preamplifier and tracking generator standard
- Vector network analyzer mode standard
- Distance to fault mode standard
- -165 dBm/Hz Displayed Average Noise Level (Typ.)
- -98 dBc/Hz.@10 kHz Offset Phase Noise (1 GHz, Typ.)
- Level Measurement Uncertainty < 0.7 dB (Typ.)
- 10.1″ multi-touch screen, mouse and keyboard supported
- Web browser remote control on PC and mobile terminals and file operation
SIGLENT SSA3000X-R real-time spectrum analyzers are powerful and flexible tools for complex RF signal monitoring and analysis. With a capability of 40 MHz analysis bandwidth and 7.2 µs 100% POI, the SSA3000X-R can provide multi-dimension data displays, advanced triggering, and RF data capturing. This makes them especially suited to solve many modern RF spectrum challenges, including hopping frequency, conflict channel, spectrum interference and more.
Applications include broadcast monitoring/evaluation, cellular sites, IoT, WiFi, Bluetooth surveying, research and development, education, production, and maintenance.
These powerful instruments are even more useful with the addition of free Vector Network Analysis (VNA) and Distance-to-fault (DTF) functions included. Now, you can perform critical real-time analysis and RF device characterization with one instrument!

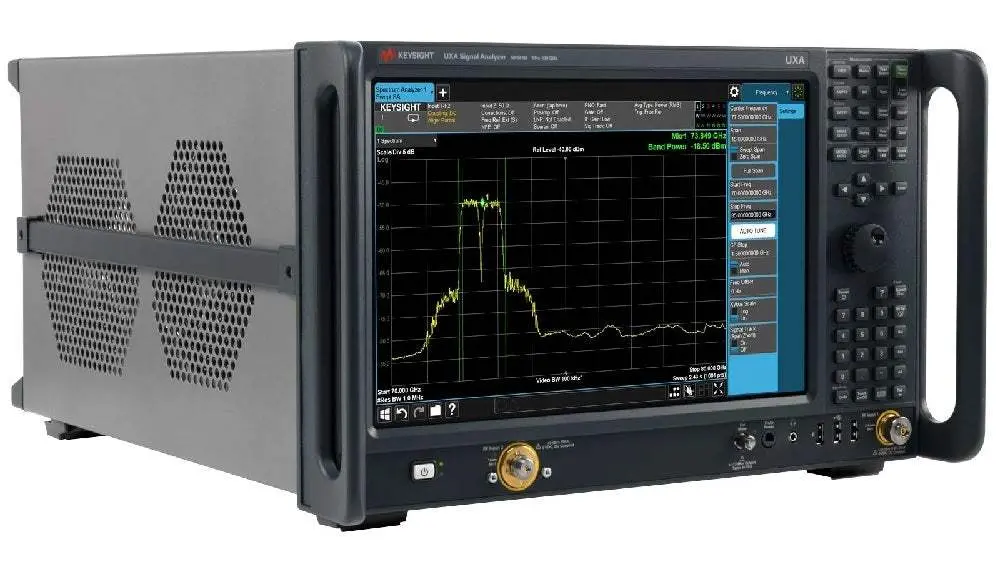

*The image is for reference only. See product specification for details.
