Description
Features:
- Programmable linear DC power supply
- Three independent outputs
- Channels 1 and 2 are adjustable, channel 3 has fixed selections
- Channels 1 and 2: 0-32V / 0-3.2A
- Channel 3: 2.5, 3.3, 5.0V / 3.2A (fixed selections)
- Total power is 220 W
- Resolution: 10 mV/10 mA
- LED display: 32 V full scale, 4 digits; 3.2 A full scale, 3 digits
- Three available operation modes; independent, series and parallel
- Smart temperature controlled fan effectively reduces fan noise
- Save/Recall 5 group system set-ups, supports data storage expansion

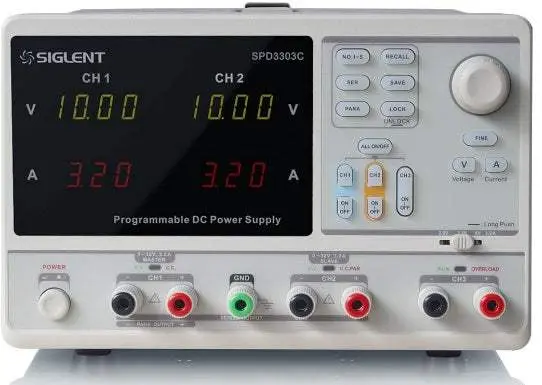

The SPD3303C is a programmable linear DC power supply that is both lightweight and feature packed. It has a high performance-to-price ratio and can be used in various types of production, education and research environments.
The SPD3303C has three independent outputs: two sets with adjustable voltage and current, and a third channel with a fixed set of selectable voltages; 2.5, 3.3, and 5 V. Total available power is 220 W. In addition, its outputs are short circuit and overload protected.
The SPD3303C exhibits high resolution, 10 mV / 10 mA, providing the user with excellent setting and read back accuracy. In addition, it maintains its ability to change output voltage or current in small increments while fully meeting the power requirements of the load.
