Description
Features:
- 4 analog channels / 1 GHz bandwidth
- 16 digital channels (requires option SDS6000Pro-16LA and SPL2016 logic probe – sold separately)
- Waveform capture rate up to 170,000 wfm/s in normal mode, up to 750,000 wfm/s in Sequence mode
- Sampling rate up to 5 GSa/s (10 GSa/s ESR)
- Eye diagram and jitter analysis (option)
- Memory depth up to 500Mpts
- 12.1” capacitive touch screen with multi-touch gesture support
- 25 MHz arbitrary waveform generator (requires option SDS6000Pro-FG, and SAG1021I or SDG series generator – sold separately)
- Trigger and decode included standard: I2C, SPI, UART, CAN, LIN
The SDS6000A Series employs Siglent’s SPO technology with a maximum waveform capture rate of up to 170,000 wfm/ s (normal mode, up to 750,000 wfm/s in Sequence mode), 256-level intensity grading display function plus a color temperature display mode. It also employs an innovative digital trigger system with high sensitivity and low jitter. The trigger system supports multiple powerful triggering modes including serial bus triggering. Tools such as History waveform recording, Search and Navigate functions, Mask Test, Bode Plot, Power Analysis and Eye /Jitter Analysis allow for extended waveform records to be captured, stored, and analyzed. An impressive array of measurement and math capabilities, options for a 25 MHz arbitrary waveform generator, as well as serial decoding are also features of the SDS6000A.

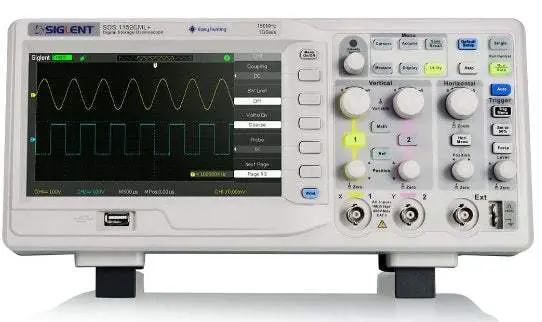

*The image is for reference only. See product specification for details.
