Rohde & Schwarz NRP67-SN-V Vector Power Sensor – Sealed Inventory

Description

Features:

• The R&S NRPxxS/SN power sensors use three separate diode paths, each operated in the optimum detector range.
• As a result, the average power can be determined with high accuracy independent of the modulation type.
• Measurement results are hardly affected by interfering signals or harmonics.
• The R&S NRPxxS/SN power sensors therefore behave in a way similar to thermal power sensors but offer significantly higher speed.
• They provide up to 93 dB dynamic range with an excellent lower measurement limit of –70 dBm.
• Fast and accurate power measurements for CW and modulated signals
• 100,000 readings/s
• Control and monitoring via LAN and USB
• Sensors for high-power applications
• Flexible operation with R&S®NRX base unit

Rohde & Schwarz NRP67SN-V Frequency 50 MHz – 90 GHz Level range -70dBm – +20 dBm Connector type 1.85mm (m) Power Meters and Power Sensors

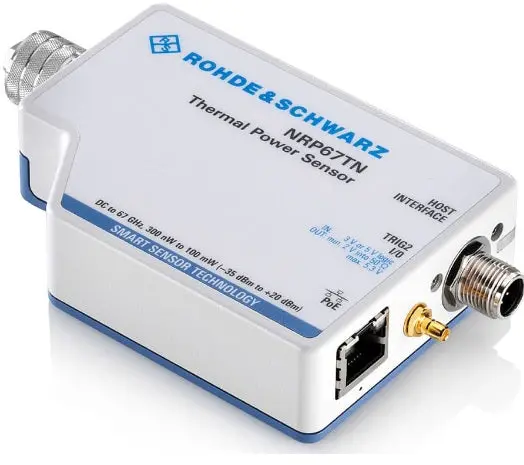

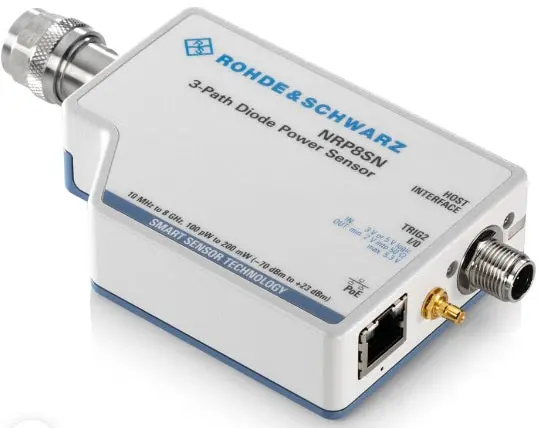

*The image is for reference only. See product specification for details.
