Description
Features:
- Number of output channels: 4
- Max. output power: 800 W
- Output voltage per channel: 0 V to 64 V
- Output current per channel: 0 A to 10 A
- Ramp function
- Output delay
- Arbitrary function
- Remote sensing
- Built-in measurements
- Data logging
- Protection functions
- TFT 5in. 800×480px WVGA touch
- Interfaces: USB, LAN
- Dimensions: 362×100×451mm
Includes:
- NGM-K103 Digital Trigger I/O
- NGM-K107 Analog Input
Comprising five powerful models
The NGP800 DC power supply series, comprising five models with 400 W or 800 W, provides maximum power at a variety of operating points. The two or four 200 W out-puts can each supply up to 64 V or up to 20 A. Electrically equivalent and galvanically isolated outputs can be wired in series or parallel for up to 250 V or 80 A.
Synchronizing your outputs, performing waveform tests and logging data for in-depth analysis – all this becomes easy with the R&S NGP800 power supply series.
An intuitive operating concept and a large touchscreen allow you to enter values much faster and to display statistics in realtime. All NGP800 power supplies include remote sense terminals, USB and a LAN interface. A user-installable GPIB interface, a digital trigger I/O, an analog input and a wireless LAN interface are optional, making these instruments great on the bench or in an automated test system.

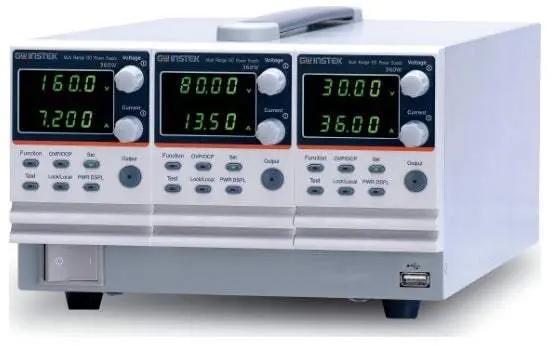

*The image is a representation of selection. See specifications for product details.
