Description
Features:
- 4 analog channels / 200 MHz bandwidth
- This version includes the MXO3-PK1 application bundle (see below for information)
- 16 digital channels (requires option MXO3-B1)
- 12-bit ADC at all sample rates
- 125 Mpoints standard memory
- 11.6″ high resolution, multitouch display with gesture support
- Industry’s fastest update rate of up to 4.5 million acquisitions/s
- 100 mm x 100 mm VESA pattern / 5U rack size

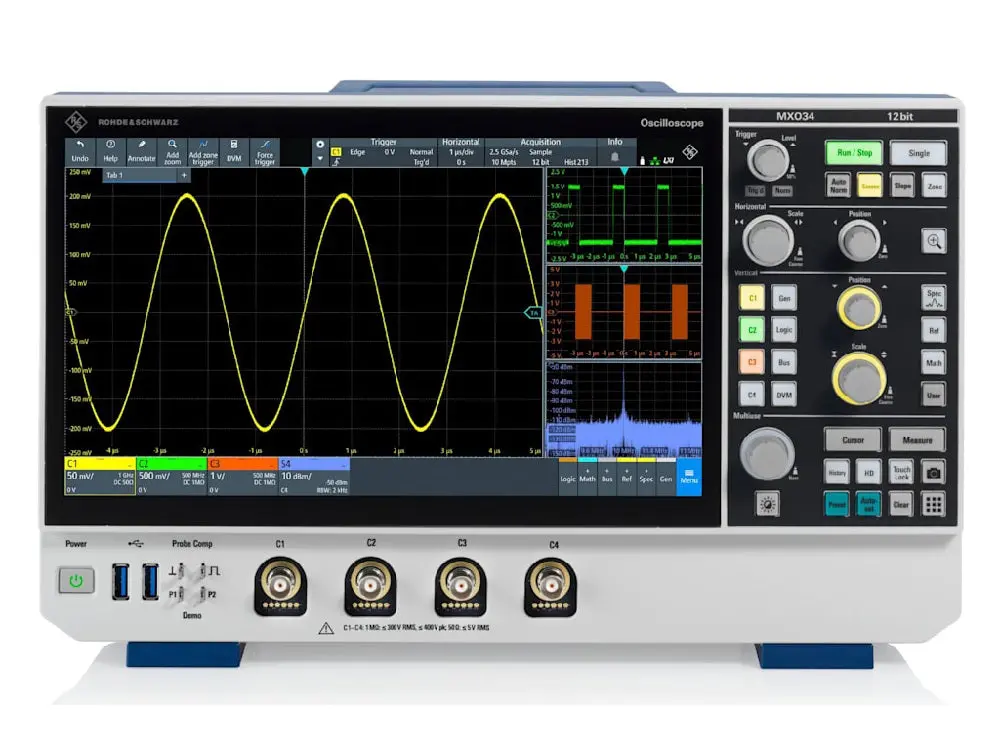

Digital Oscilloscope (4 Channels / 200 MHz) with MXO3-PK1 Application Bundle
The Rohde & Schwarz MXO 3 series oscilloscopes use cutting-edge technology for speed and precision. The enormous capacity of the oscilloscope comes in a small package. Freedom and versatility are available without compromising results. Enjoy unmatched performance along with quick and easy understanding of your DUT.
Several versions available

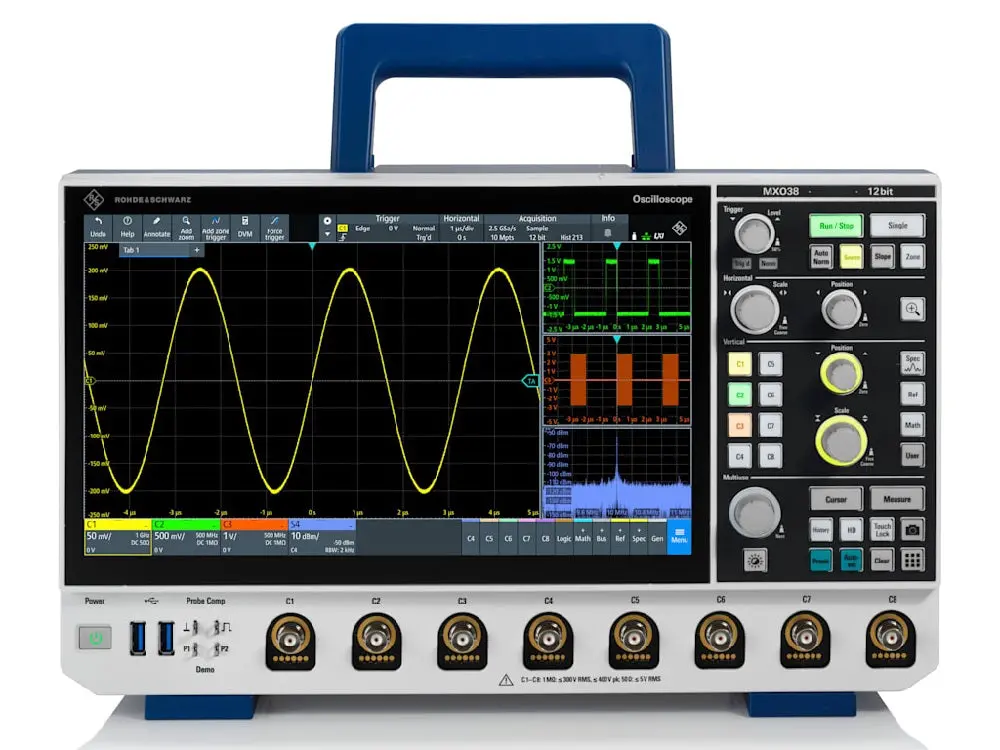

Rohde & Schwarz offers several versions of the MXO3. They are available with four or eight analog channels, and a bandwidth ranging from 100 MHz to 1 GHz.
Up to 99% real-time capture
While most oscilloscopes capture less than 2% of real-time system activity, MXO oscilloscopes capture up to 99% of your signal’s activity. Instantly see details that other oscilloscopes miss. With 4.5 million waveforms/s, quickly see rare events and anomalies that other oscilloscopes mask. Minimum trigger re-arm time is just 21 ns versus microseconds on other oscilloscopes.
Industry’s fastest spectrum
MXO 3 creates its spectrum display by processing FFTs in hardware. See details in the frequency domain, including dynamic signal changes that other oscilloscopes do not show. Use free run trigger mode, a feature only found on Rohde & Schwarz oscilloscopes, to ensure the fastest spectrum performance of 50000 FFTs/s.
Low noise plus more vertical resolution
See small signal changes in the presence of larger signals:
- With 12-bit vertical resolution in hardware at all sample rates, get 16x more resolution than 8-bit oscilloscopes
- Low-noise: only < 50 µV RMS noise on 1 MΩ and 50 Ω paths at 1 mV/div with 100 MHz bandwidth
Logic analysis (option MXO3-B1)
Every MXO 3 series oscilloscope comes equipped with MSO logic analysis. Just add MSO probes to get 16 digital channels. Use the MSO probes across different MXO series oscilloscopes without needing a software license.
The oscilloscope logic channels run at 5 Gsample/s, delivering a time resolution of 200 ps. With a substantial memory depth of 125 Mpoints per channel, the sampling rate remains consistent over a large range of time base settings. Use logic triggering to isolate critical events like narrow glitches and specific pattern combinations.
