Description
Features:
- Output Power: Single Phase Output (0.5kVA to 120kVA)
- Output Frequency: Type A to Type E frequency range according to the application
- Output Voltage: 5~150V/10~300VL-N (520VL-L), Optional for custom output voltage range available
- Double conversion, Galvanic isolation input to input, Clean Output, THD: < 2% (Optional for <1%)
- Analog knob for adjusting V and Hz, LED display for showing output V, A, kW, Hz
- One single stand alone unit up to 2000kVA (not parallel connected multiple units) with high MTBF
- All models equipped with input breaker and output magnetic switch with safety protection
- Optional output EMI filter for EMC chamber power applications
- Optional overload capacity for motor or inductive type load
- Optional for environmental proof or outdoor applications
- Optional RS232 or RS485 remote controlling the output V and Hz (no monitoring available)
Applications:
- Burn-In, Aging Test
- Quality Assurance Test
- Clean Power, Chamber Power
- Military Maintenance Power
- Product Test and Verification
- Transformer Test
Specifications:
- Power (VA) – 100000.00
- Volts – 300.00
- Amps – 833.30
- Frequency – 60.00
- Phase – 1

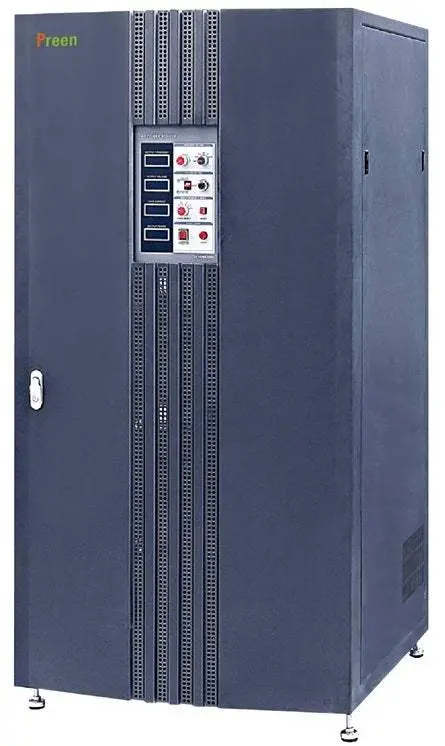

Preen’s AFC-31100 is an adjustable AC power source, provides double power conversion from a variety of inputs to pure clean sinusoidal output, isolate the harmonics from the grid system, fully adjustable across the output voltage and frequency ranges.
