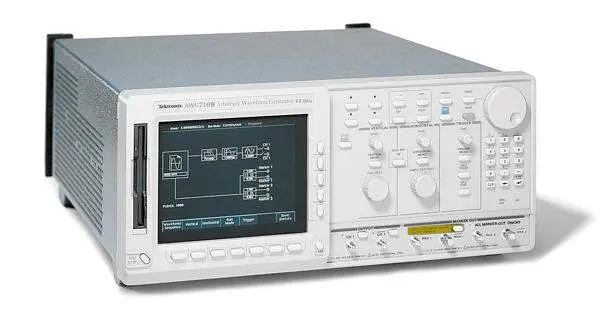

Pre-Owned Tektronix AWG710B Arbitrary Waveform Generator

Description

Additional Features:

• 4.2 GS/s Sample Rate Simulates Real-world Signals Up To 2.1 GHz
• 2 Markers With 2.0 ps; RMS (@ 4.2GS/s, Typical) Jitter
• 32.4M (32,400,000) or 64.8M (64,800,000) Point Record Length with Option 01
• Analog Bandwidth to 2 GHz (Option 02)
• Direct External clock input
• Synchronous operation mode supports two AWG710B outputs (2: analog, 4: marker) synchronization
• Waveform Quick Editor with 300 fs Edge Timing Resolution
• Allows Two-signal Mix Function Digitally to Support Disk Drive Noise Performance Test and Pre/De-emphasis Serial Data Communication Test
• Real-time Sequencing Creates Infinite Waveform Loops, Jumps, Patterns and Conditional Branches

The AWG710B Arbitrary Waveform Generator Delivers World-class Signal Fidelity at 4.2 GS/s to Solve Ever-increasing Measurement Challenges. New two box synchronous operation function supports 2 channel 4.2 GS/s solution.

The AWG710B combines world-class signal fidelity with ultra high-speed mixed signal simulation, a powerful sequencing capability and graphical user interface with flexible waveform editor, to solve the toughest measurement challenges in the disk drive, communications and semiconductor design/test industries.

The built-in signal applications enable you to easily create standard waveforms for disk drive read channels, communications up to 4.2 Gb/s such as ITU-T, TI.102, Fibre Channel and SDH/SONET also various semiconductor applications.
