Description
Features:
- High Power Density 1500 W in 1U
- Wide Range Input: 825-265 VAC Continuous, single phase, 47/63 Hz
- Active Power Factor Correction: 0.99 typical
- Built-in RS-232/RS-485 Interface
- Last Setting Memory; Front Panel Lockout
- Advanced Parallel reports total current up to four identical units
- Global Commands for Serial RS-232/RS-485 Interface
- Reliable Encoders for Voltage and Current Adjustment
- Constant Voltage/Constant Current auto-crossover
- Parallel Operation with Active Current Sharing
- Independent Remote ON/OFF and Remote Enable/Disable
- External Analog Programming and Monitoring
- Reliable Modular and SMT Design
- 19″ Rack Mounted ATE and OEM applications
Applications:
- Test and Measurement
- Semiconductor Processing
- Aerospace and Satellite Testing
- Laser Diode
- Heater Supplies
- RF Amplifiers and Magnets
The Lambda GEN30-50 programmable power supply sets a new standard for flexible, reliable, AC/DC power systems in Test & Measurement, Industrial and Laboratory applications. The Gen30-50 is designed for demanding application with common controls that are shared across all platforms.
Multiple remote programming methods are available including the built-in Remote Analog Program/Monitor and Remote Digital Serial Communication (RS-232/RS-485) Interfaces along with the optional LXI certified LAN, IEEE (IEEE 488.2 & SCPI compliant), USB (2.0 compliant) and Isolated Analog (5V/10V and 4-20mA) Interfaces.

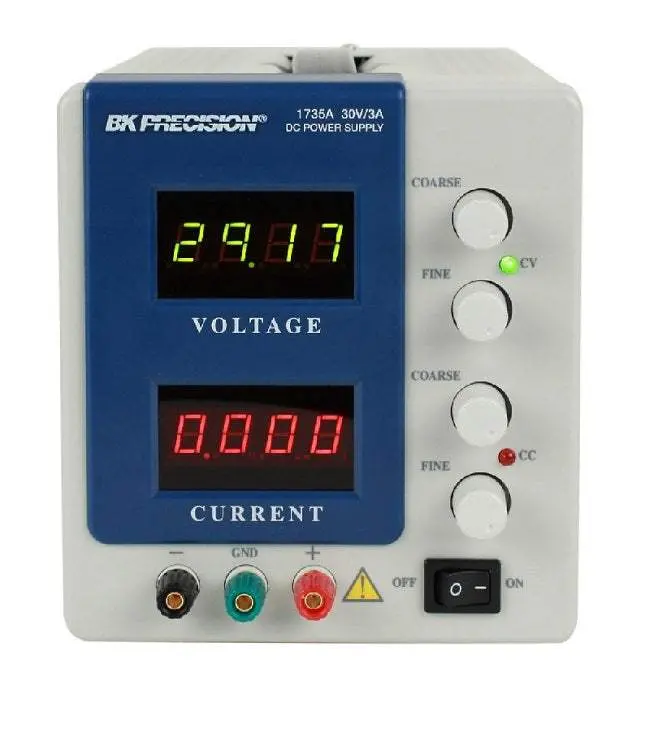

The image is for reference only. See product specification for details.
