Keysight PS0027A Replacement Isolated Probe Tip – Genuine, New

Description

Features:

• Isolated probe tip
• Compatible with Keysight PS0004A, PS0006A and PS0008A
• Max bandwidth: 1 GHz
• Max measurable differential signal (VAC,peak + VDC – Voffset): ±1,000 V
• Max non-destructive differential voltage (VAC,peak + VDC): ±2,500 V
• Max offset (V): ±2,500 V
• Max common-mode voltage range: ±60,000 V
• Common mode rejection ratio: >180 dB at DC
• Connector type: 0.200″ pitch, 0.025″ square pin socket

Keysight offers several probe tips for use with its PS0004A, PS0006A and PS0008A isolated probes.

A probe tip is required to connect the sensor head to the DUT for measurements. Tips are sold separately and vary in voltage performance and connector type.

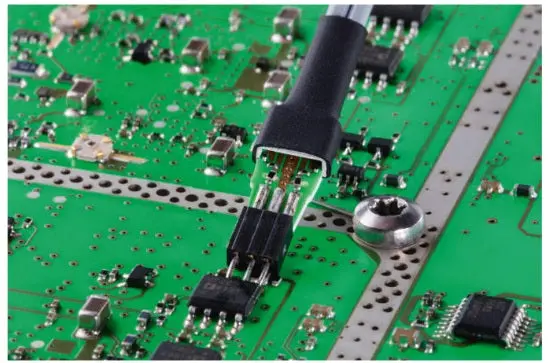

*The image is for reference only. See product specification for details.
