Description
Additional Features:
- Two independent 4×12 matrix switches
- 3-pole switching (HI, LO, GUARD)
- Connect to general purpose analog backplane
- Configuration easily adapted with jumpers
- 4×24 or dual 4×12 configuration
- Compatible with Models 707A and 708A
- Accessories Supplied: Screw terminal adapter for 4×24 configuration

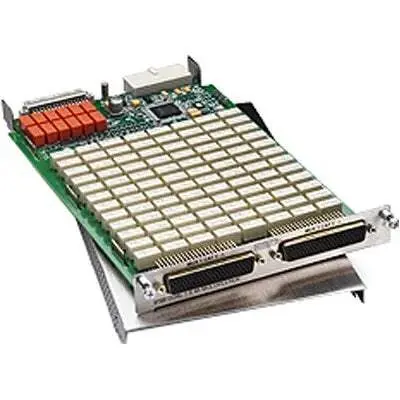

The Keithley 7071-4 Dual 4×12 General Purpose Matrix Card provides the capability to expand the number of columns that the Model 707A will support to a maximum of 720 in five 707A mainframes. This matrix card has two banks of four signal paths that connect through jumpers to the general purpose analog backplane in the 707A mainframe for automatic interconnect between cards. Jumpers may be removed to isolate any 4×12 matrix segment or repositioned to cascade segments into a 4×24 configuration.
