HT Instruments HT77C Temperature Probe Accessory – Factory New

Description

HT77C HT Instruments Accessory

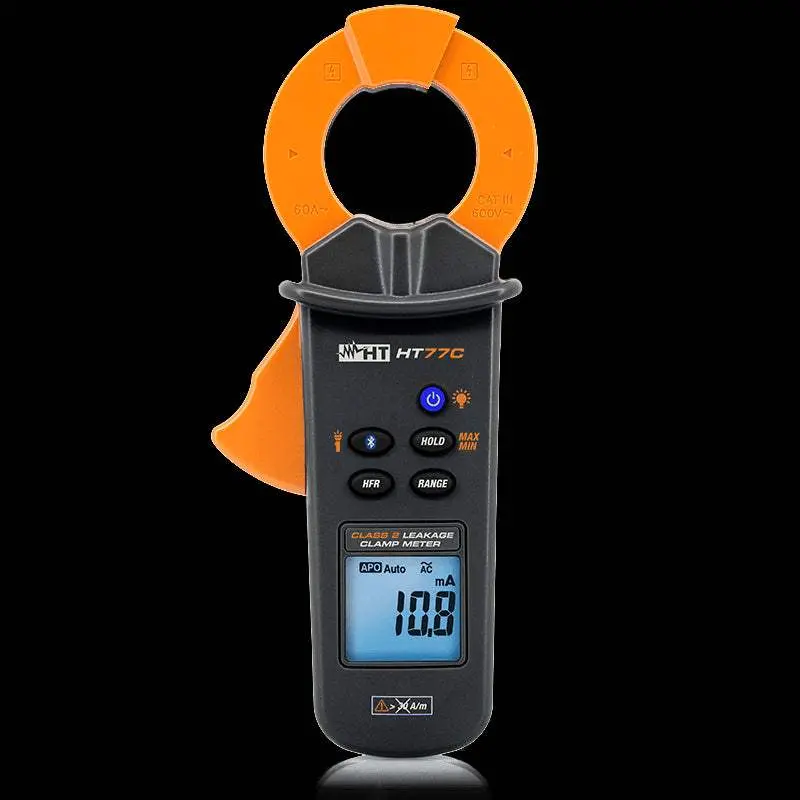

HT77C AC clamp meter for measuring leakage currents from 10µA to 60A

Features:

• AC Clamp meter for leakage current from 10µA to 60A
• New model HT77C is clamp meters designed for an accurate measurement of very low values of AC currents and, therefore, they are mainly employed in detecting and and defining leakage currents in private and industrial electric systems, which typically cause RCDs’ tripping.

Specifications:

Functions

• TRMS
• AC Current  TRMS from 1µA to 60A
• Low-pass filter  50 / 60Hz and 1kHz
• Data HOLD
• MAX/MIN
• Integrated white light illuminator
• Automatic / manual range
• Backlit LCD display
• Bluetooth BLE 4.0
• Auto Power OFF
• AVG function
• Data logger function via HTLeakage APP

Guidelines

• CE MARK
• EMC 2014/30/EU
• EMC: IEC/EN61326
• IEC/EN61010-1
• LVD 2014/35/EU
