Description
Features:
- Triple Channel, Max 1080W, Programmable Switching DC Power Supply
- Voltage combination – Channel 1: 30V | Channel 2: 80V | Channel 3: 80V
- Advanced web server: execute SCPI commands, control power supply through the server, data log, edit output sequence
- Size: 1/2 Rack 3U
- LAN, USB, and external analog remote control terminal communication interfaces
- Optional GPIB-USB adapter and RS232-USB available (sold separately)
- Adjustable rising and falling slew rate
- Output latency between channels with the same voltage module is less than 0.1ms

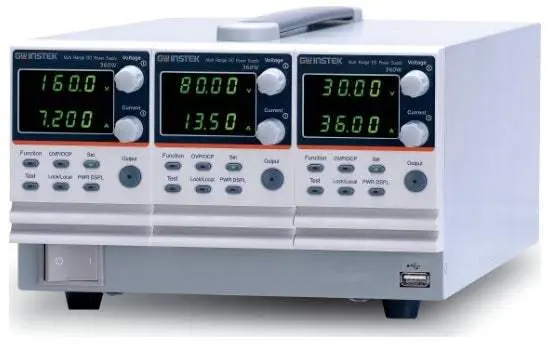

The Instek PSW-1080L144 is a triple-channel, wide-range output, programmable switching DC power supply. The maximum power is 1080W. Channel one is rated for 30V output voltage and 36A output current. Channels two and three are rated for 80V output voltage and 13.5A output current.
The PSW-Multi series includes 37 models including 13 dual-channel models with a rated power of 720W, and 24 triple-channel models with a rated power of 1080W. The rated voltages of low-voltage modules are 30V, 40V, 80V, 160V. The rated voltages of high-voltage modules are 250V and 800V.
*The image is a representation of selection. See specifications for product details.
