Description
Features:
- Two isolated, stainless steel, pressure sensors with 0.025% f.s. accuracy
- Can be configured by selecting either a 16 psig (1.1 bar) or 36 psig (2.48 bar) low pressure sensor and then adding your choice of 7 high pressure ranges
- External pressure module connection supports all pressure modules (29 ranges) for even more measurement capability
- Temperature-compensation ensures accuracy in field applications
- Pt100 RTD input for temperature measurement, accurate to 0.1°C (0.2°F) (Requires optional RTD probe sold separately)
- Measure 4-20 mA signals
- Internal 24 V Loop Power Supply can power a transmitter under test
- Measure up to 30 V DC
- Large graphic style LCD with backlight can be configured to display up to 3 inputs simultaneously (i.e. pressure 1, pressure 2, and RTD or any combination of inputs)
- Pressure displayed in the user’s choice of 19 engineering units
- Switch test on both pressure inputs, or external pressure module
- Operating mode layers support simple measurements to complex applications
- Up to five frequently used setups can be stored; last setup automatically recalled on power-up
- % error and damping functions
Accessories (included):
- Dual Sensor Pressure Calibrator
- Soft case
- Four (4) AA batteries
- Manual
- Traceable calibration certificate
- Test leads
Specifications:
- Range – -14 psi to +36 psi, -0.97 bar to 2.48 bar
- Resolution – 0.001 psi, 0.0001 bar
- Accuracy – 0.025 % of full scale

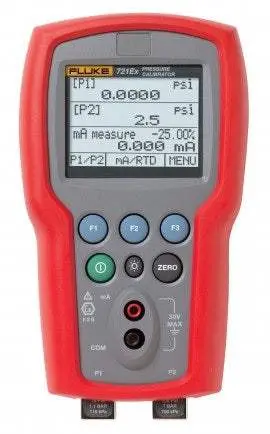

Precision Pressure Calibrator with dual isolated sensors for gas custody transfer applications. Ranges: 36 psi (low) 300 psi (high).
