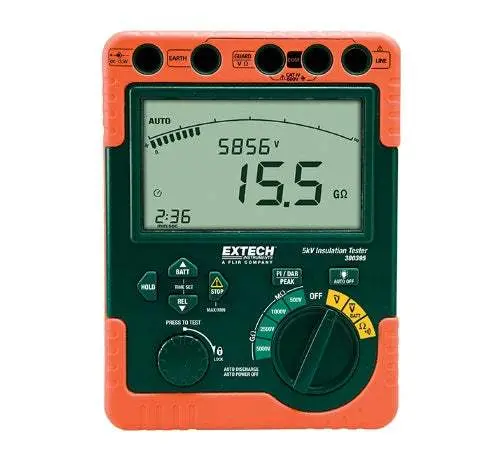

Extech 380396 Insulation Resistance Tester with NIST Traceable Calibration (New)

Description

Features:

• Test Voltages of 500V, 1000V, 2500V, and 5000V
• Measure Insulation Resistance to 60GOhm
• Large 6000 count display with bargraph and backlight
• Polarization Index measurement (PI)
• Dielectric Absorption Ratio measurement (DAR)
• AC/DC Voltage measurement from 0 to 600V with Max/Min, Peak and Relative functions
• 1 to 15 minute timer function for IR measurements
• Resistance measurement
• Indication of output voltage and discharge voltage
• Auto-discharge function and voltage output warning function
• Autoranging, Auto Power off and battery check
• Complete with test leads, 8 x C batteries, 220V AC adaptor, and heavy duty carrying case

Specifications:

• Test Voltage: 500V/1000V/2500V/5000V
• Insulation Resistance: 0 to 6MΩ , 0 to 60MΩ , 0 to 600MΩ , 0 to 6GΩ , 0 to 60GΩ
• Accuracy: ±2.5% of reading
• AC/DC Voltage: 0 to 600V
• Accuracy: ±1% of reading
• Resistance: 0 to 600Ω
• Accuracy: ±1.5% of reading
• Continuity: 50Ω
• Power: Eight type C batteries
• Dimensions: 7.8 x 5.8 x 3.4″ (198 x 148 x 86mm)

With the 380396-NIST measure Insulation Resistance to 60GΩ with test voltages of 500V, 1000V, 2500V, and 5000V. Featuring polarization Index measurement (PI), Dielectric Absorption Ratio measurement (DAR), AC/DC Voltage measurement to 600V with Min/Max, Peak and Relative functions, and 1 to 15 minute timer function for IR measurements. Comes with test leads, eight C batteries, 220V AC adaptor, heavy duty carrying case, and user manual.
