Description
Features:
- Compatibility: MDL4U001, MDL4U002
- Channels: 1
- Operating Voltage: 600V
- Rated Current: 20A
- Power: 300W

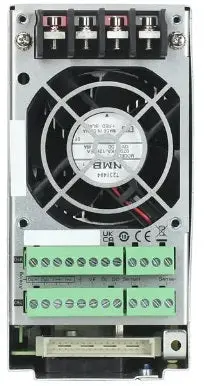

The BK Precision MDL4U305B 1-Channel DC Electronic Load Module is designed for use with the MDL4U Series Mainframe and Mainframe Extension.
This module features a one-slot form factor that populates only one slot on a compatible mainframe. The mainframe system can be customized according to the user’s requirements in which identical modules can be combined in parallel to increase the maximum power needed for high current applications. Featuring backwards compatibility, the MDL4U305B can be installed and used in the same mainframe as MDL4U (non-B) Series Modules.
When installed into a compatible mainframe, this module provides users with a system that offers the flexibility to test a wide range of power sources from multi-output DC power supplies to batteries, fuel cells, and photovoltaic arrays. This high-performance electronic load module is capable of operating in constant voltage (CV), constant current (CC), constant resistance (CR), and constant power (CW) mode and is designed with both front and rear input terminals.
