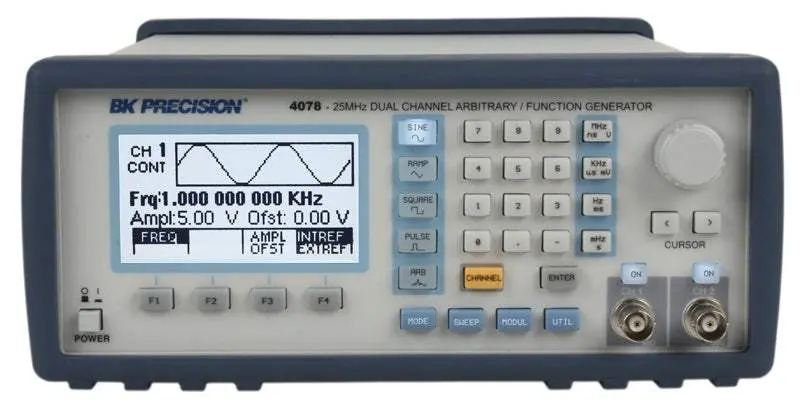

B&K Precision 4078 Used Arbitrary Waveform Generator

Description

Features:

• 14-bit, 100 MSa/s, 400 k point Arbitrary Waveform Generator
• 25 MHz Sine / 25 MHz Square waveforms
• Predefined Pulse, Ramp, Triangle, Noise, Sin (X)/X, Exponential and Gaussian waveforms
• Both channels offer full functionality. All wave form parameters such as frequency, amplitude and offset can be set independently
• Synchronize both output signals to the same clock signal (external or internal) and precisely adjust the phase relationship between the two signals
• Economical baseband I/Q signal source
• Saves cost and bench space
• AM, FM and FSK modulation
• 10 mVpp to 10 Vpp with 1 mVpp settable amplitude resolution
• Large graphical LCD shows a detailed output waveform representation
• Fully programmable markers
• Fully protected output
• Closed case calibration
• Arbitrary waveform editing software included
• SCPI compliant command set

Accessories:

• CD containing User Manual & Wave-X Software,
• Null Modem Serial Interface Cable
• Power Cord

The BK Precision 4078 is a versatile high performance dual channel function/arbitrary waveform generator with the largest arbitrary memory depth in its class. The generator combines the ability to produce nearly any conceivable arbitrary waveform with accuracy and precision and a DDS architecture offering easy to use conventional function generator capabilities. Arbitrary waveforms have 14 bit amplitude resolution, 100 MSa/s sample rate and up to 400,000 points length. Waveforms can be output in continuous, triggered, gated or burst modes. The instrument can be remotely controlled using SCPI compliant commands via RS232.

Extensive features such as internal or external AM, FM and FSK modulation along with versatile sweep capabilities and variable edge pulse generation make this generator suitable for a wide range of applications including electronic design, sensor simulation, functional test or generation of I/Q modulated signals.
